Name: Satin Brass Full Mortise Round Corner Door Hinge, 3-1/2 in
Brand: NATIONAL HARDWARE
SKU: 717-1333
Availability: InStock

Description
Additional Details
Purchase History
General Ledger Coding

Some product details generated with AI assistance — verify specs before ordering.

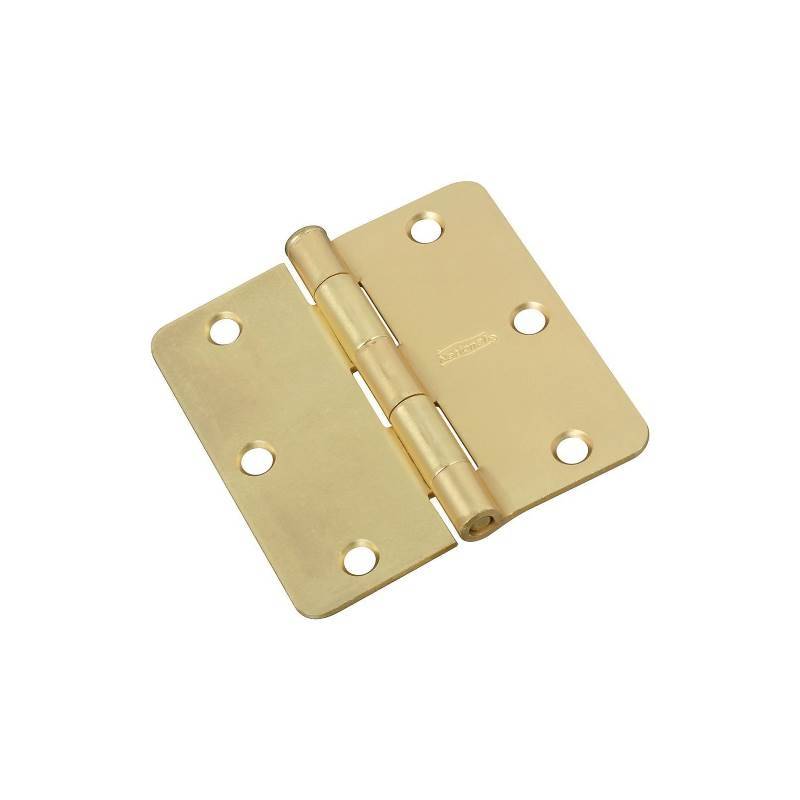

The N830-333 is a professional-grade full mortise door hinge designed for interior residential applications. Constructed from heavy-gauge cold-rolled steel, this 3-1/2 inch hinge features a 1/4-inch radius round corner design for a clean, modern fit. The satin brass finish provides a classic aesthetic while the non-rising, removable pin ensures easy installation and maintenance. Each pack includes three hinges and matching countersunk screws, offering a complete solution for standard door mounting with a safe working load of 50 lbs.

National Hardware Door Hinge, Full Mortise, Round Corner, Series: V512RC, Knuckle Bearing, 3-1/2 in Door Leaf Length, 3-1/2 in Frame Leaf Length, Non-Rising, Removable Pin, Fasteners: (5) Knuckles, Screws, 50 lb Load Capacity, 3-1/2 in Overall Width, Steel, Satin Brass, BHMA A138.18, For Interior Residential Doors

Packaging/Shipping Size and Weight: Length: 1" | Width: 5.45" | Height: 6.4" | Weight: 0.2 lbs

Product Details
Brand:	National Hardware
Series:	V512RC
Product Type:	Door Hinge
Hinge Type:	Full Mortise
Corner Type:	Round Corner
Corner Radius:	1/4 in
Material:	Cold Rolled Steel
Finish:	Satin Brass
Color:	Satin Brass
Size/Dimensions:	3-1/2 in door leaf length; 3-1/2 in frame leaf length; 3-1/2 in overall width
Knuckles:	5
Pin Type:	Non-Rising Removable
Bearing Type:	Knuckle Bearing
Load Capacity:	50 lb
Application:	Interior Residential Doors
Certifications:	BHMA A138.18
Size:	3-1/2 in x 3-1/2 in
Number of Mounting Holes:	6
Weight Capacity:	50 lbs
Hole Pattern:	Template
Knuckle Count:	5
